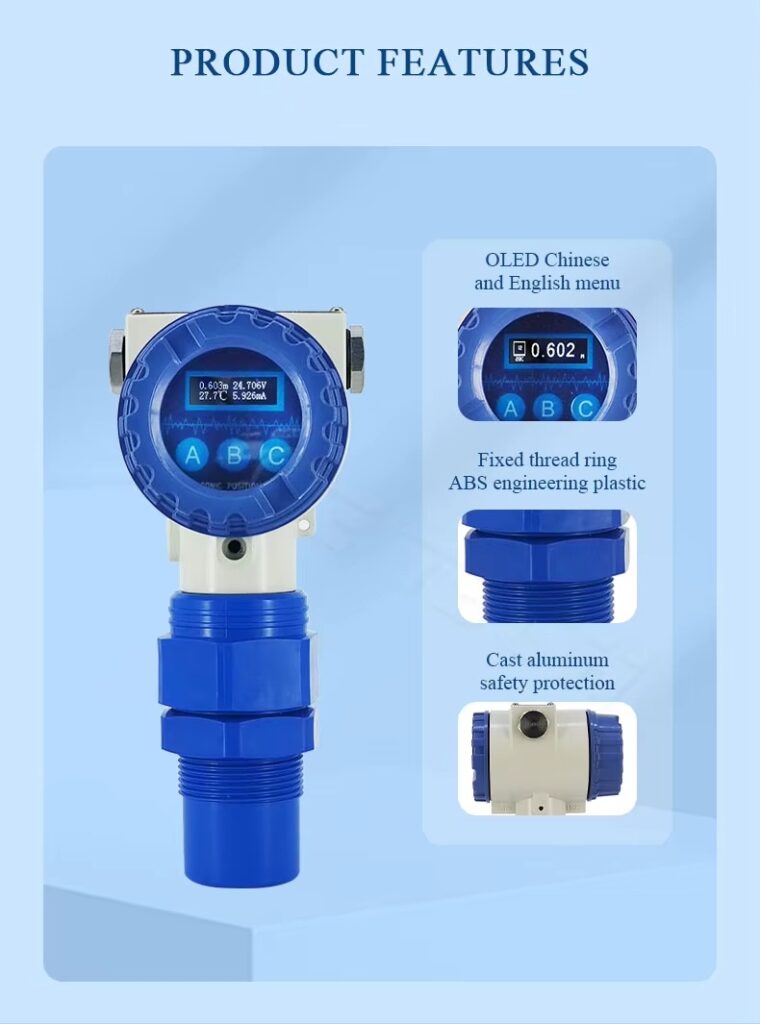

The shell of Explosion-proof Ultrasonic Level Sensor is made of cast aluminum and the probe part is made of PP or stainless steel, it adopts internationally recognized electrical interfaces. The main body cover is designed to be transparent, easy to observe the display.
Explosion-proof Ultrasonic Level Sensor owning the advantage of perfect level monitoring, data transmission, and man-machine communication. The CPU applies industrial monolithic integrated circuits, digital temperature compensation and so on. You can select analog, switch output, RS485 series signal output.
It’s applicable for various fields concerning level measuring and monitoring, and no need to contact the measured liquids.
Product Features
Simple structure, easy to install and maintain;
Long service life;
Non-contact measurement-not affected by the viscosity, density and other physical characteristics of the liquid
Strong adaptability-not subject to the medium density, dielectric constant, electrical conductivity and other factors, applicable to a variety of liquid and solid material height measurement. Can be applied to a variety of environments and occasions
Convenient reading – it can provide real-time feedback of liquid level information, realizing intelligent monitoring and management.
Safe and clean – due to the non-contact measurement, avoid the pollution problem, to ensure the cleanliness and safety of the instrument.
| Specification of Explosion-proof Ultrasonic Level Sensor | |
| Measuring range | 2m, 5m, 8m, 10m, 12m, 15m, 20m. |
| Blind area | <0.3~2m (varying with range) |
| Max measure error | ±0.3% F.S |
| Emission angle | <12° |
| Display | OLED Chinese and English menu (with light) |
| Display resolution | 1mm |
| Output signal | 4~20mA
(other output signal is available 0~20mA; 0~5V; 0~10V) |
| Communication | RS485; HART; GPRS; Mini SD Card; USB optional |
| Max load impedance | 300Ω |
| Power supply | 12-24VDC (standard) or 220VAC (optional) |
| Power consumption | <0.6W |
| Operating surroundings | normal temperature, normal pressure |
| Shell material | Cast aluminum; ABS engineering plastic |
| Probe material | ABS; PP; stainless steel |

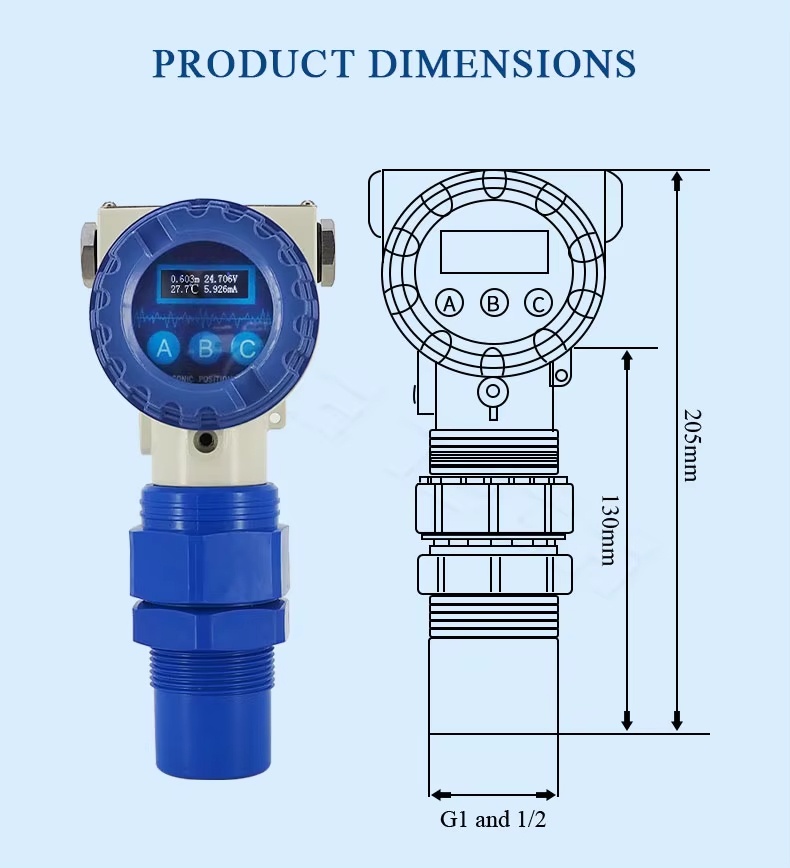

| Installation | G1 and 1/2 screw ring |
| Protection grade | IP65 |
