Side mounted magnetic level indicator is installed on the side wall of the liquid container. It is a kind of instrument indicator used to measure the position of liquid, belongs to a kind of liquid level meter, also known as magnetic level gauge or magnetic float level meter. Applicable to various towers, tanks, vessels, spherical containers and boilers and other equipment for media level detection, especially for high temperature, high pressure, corrosion-resistant occasions.

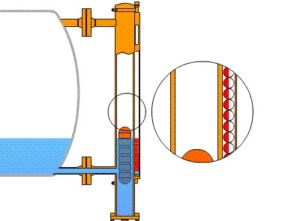

The side mounted magnetic float level indicator adopts the principle of connection device. The liquid in the container is introduced into the chamber of the liquid level indicator. The float in the chamber, according to the principle of buoyancy and magnetic coupling principle. Outside the chamber is attached to a flipper scale that reflects the magnetic phenomenon as a display of the liquid level position. As the liquid level inside the chamber changes, the height of the float also changes accordingly, the magnets within it also move, drives the red and white flippers to turn 180°. When the liquid level rises, the flipper changes from white to red, and when the liquid level falls, the flipper changes from red to white, and the red-white junction of the gauge is the actual height of the liquid level inside the vessel, thus realizing clear liquid level indication. operators can readily and accurately identify the fluid level within the tank or vessel.

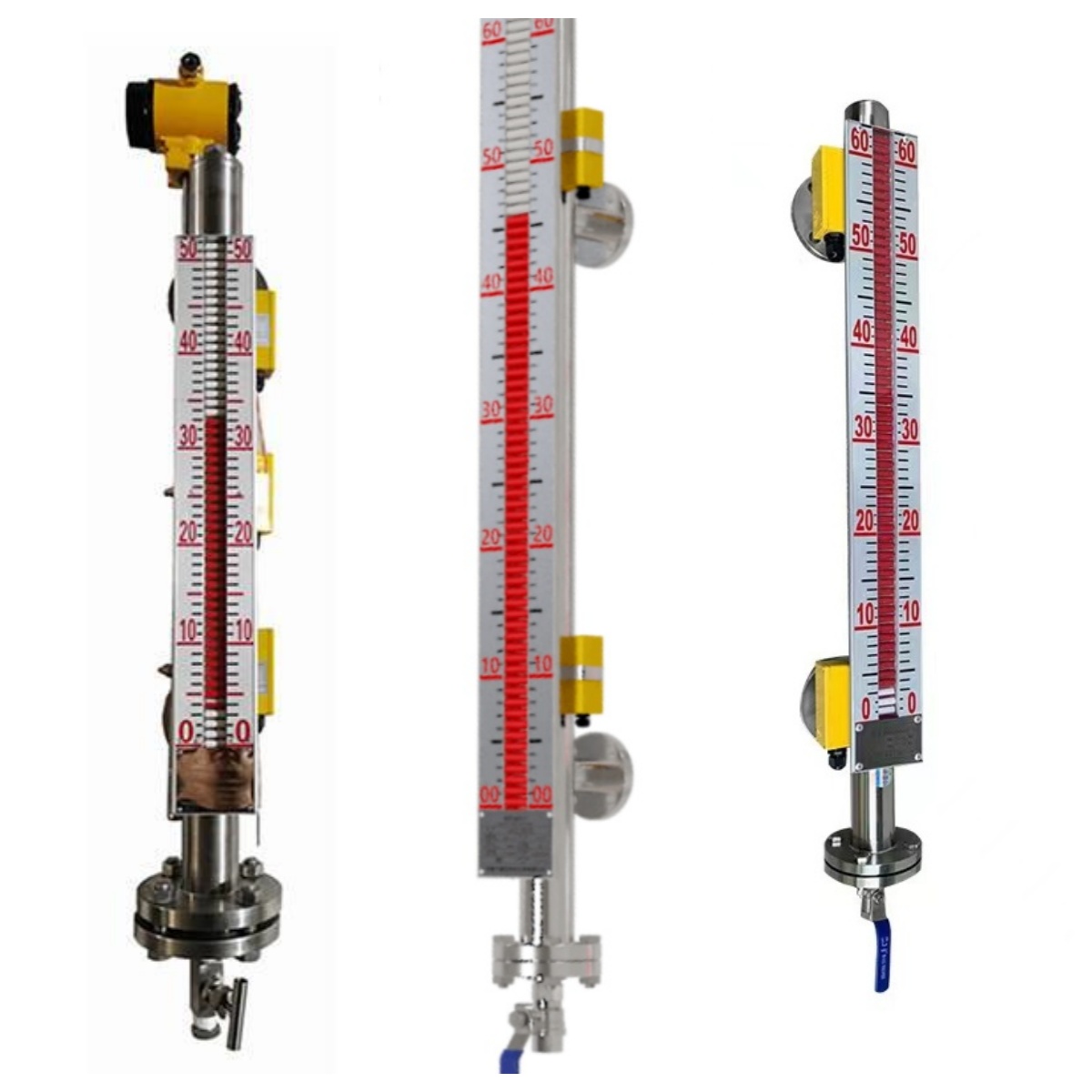

Accessories such as switches, remote transmission, and alarm control can be supplied and fitted to this type of gauge.

Product Features

•  Direct readings;
• Wide measuring range;
• Easy installation and simple structure;
• Long service time and little maintenance;
• Wide range of applications, suitable for liquid level measurements of various working conditions (such as high temperature, high pressure, corrosion);
• Free assembly and adjustment. It can freely add switches, remote transmission, and alarm control as needed;
• High safety. it is completely isolated from the storage tank, so there is no risk of leakage.
